Warmup Electric Underfloor Heating 200w Sticky Mat Kits

Description

Warmup Matting Underfloor Heating Systems are designed to be tough enough for professional use, yet easy to install for do-it-yourself enthusiasts.

The StickyMat System consists of a thin loose wire evenly spaced and taped to a glass fibre mesh with pressure sensitive adhesive, which allows for the fastest and most secure installation method of electric underfloor heating. The system is available in a choice of 150 W/m² and 200 W/m² heat outputs.

The Warmup Underfloor Heating Mat System utilises our dual core heating element and with only one power lead to wire, it is easy to install in just a matter of hours, without raising floor levels. The cable is attached in a series of loops to thin but tough underfloor heating mats, to fit floor areas from as small as 0.5m² and up.

Please ensure all Safety Guidelines are adhered to during and after installation of this product.

Features and benefits

• Thinnest wire you can buy: 2mm, multi-strand core, double-insulated using advanced fluoropolymers
• StickyMat with pressure sensitive adhesive, for the fastest and most secure installation
• Quick installation - Simply roll out the underfloor heating mat with pre-spaced wire
• The pressure sensitive adhesive ensures that no wire or mesh is raised when tiling or covering with self-levelling compound
• Can be repositioned easily without losing adhesion
• Flexible - no customising is necessary
• Approvals: ASTA BEAB, KEMA, GS, CERTIF, VDE and CE mark
• Lifetime Warranty
• SafetyNet Installation Guarantee

Installation

Please Note: The following is intended as a guide only. Always refer to the full installation manual for instructions.

1. Divide the floor into a series of rectangles. From these measurements you can calculate how many mats you’ll need and what sizes. Exclude permanent or static fixtures from your calculations.
2. If the floor is screed over concrete, it is advisable to lay insulation boards to minimise heat loss and ensure quicker warm up times.
3. Lay the first run. At the end of the run cut the mat leaving the cable intact, turn the mat through 90º or 180º and continue laying. When the area is covered, adjust the mat until the loops are equal distance apart. Now attach the mat to the subfloor using the special tape supplied.

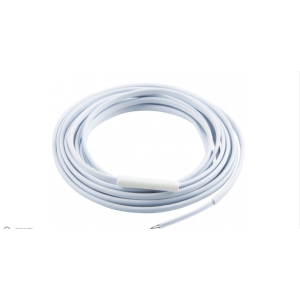

4. You will need to install an RCD fused spur which powers the thermostatic controller/programmer and the matting system heating element network. Lay the temperature probe from the timer-thermostat onto the floor, equidistant between two of the cable loops, and attach it to the floor surface. Now take the unheated power supply cable from the end of the matting system, which should be positioned near the thermostat. Once all the connections have been made to the power supply, run the heater(s) to ensure they are heating up (no more than 10 minutes).
5. Either lay a thin, self-levelling screed over the mat and leave it to dry before laying tiles or trowel flexible tile adhesive directly over the mat and lay the floor tiles. Once the grouting is complete, let the tile adhesive cure before switching on the system.

Specification

• Heater construction - Sticky fibreglass mesh with pre-spaced dual core earth screened cable
• Operating voltage - 220-240V; 50Hz
• Mat width - 500mm (0.5 metre)
• Mat thickness - 3mm
• Inner insulation - Advanced fluoropolymer (ETFE)
• Outer insulation - Advanced fluoropolymer (ETFE)
• Output rating - 150 W/m² and 200W/m²
• Cold tail length (connection lead) - 3m
• Heater maximum temperature - 55°C/131°F
• Approvals - ASTA BEAB, KEMA & GS
